产品名称:不锈钢美标球阀、美标球阀、铸钢美标球阀、美标法兰球阀、碳钢美标球阀
产品型号:Q41F、Q341F-150LB/300LB/600LB/900LB/1500LB
一、产品性能规范
公称压力(PN) |
1.6 |
2.5 |
4.0 |
6.4 |
壳体试验压力 |
2.4 |
3.8 |
6.0 |
9.6 |
密封试验(液) |
1.8 |
25.8 |
4.4 |
7.0 |
密封试验(气) |
0.5~0.7 |
适用介质 |
C P R 水、油品、蒸汽 硝酸类 醋酸类 |
适用温度 |
≤200 |
二、主要堆零件材料
名称 |
WCB类 |
CF8类 |
CF3类 |
CF8M类 |
CF3M类 |
阀体左体 |
A216-WCB |
A315-CFB |
A35-CF3 |
A351-CF8M |
A351-CF3M |
球体 |
B2-B8 |
A105-1025 |
A182-F304L |
A182-F304L |
A132-F316 |
A182-F316L |
B8以上 |
A216-WCB |
A351-CF8M |
A351-CF3 |
A351-CF8M |
A351-CF3M |
阀杆 |
A182-F6a |
A182-F304 |
A182-F304L |
A182-F336 |
A182-F316L |
阀座 |
|
PTFE/增强PTFE/NYLIN |
阀座支承圈 |
A105-1025 |
A182-F304 |
A182-F304L |
A182-F316 |
A182-F316L |
弹簧 |
|
3yc-7/17-49H |
O型圈 |
NBR |
氟橡胶 |
螺柱 |
A193-B7 |
A193-B8 |
螺母 |
A194-2H |
A194-8 |
三、10K主要连接及重量
尺寸 |
inch |
1/2″ |
3/4″ |
1″ |
1-1/2″ |
2″ |
2-1/2″ |
3″ |
4″ |
5″ |
6″ |
8″ |
10″ |
DN |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
L |
mm |
108 |
117 |
127 |
165 |
178 |
190 |
203 |
229 |
356 |
394 |
457 |
533 |
H |
mm |
59 |
63 |
75 |
97 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
345 |
W |
mm |
130 |
130 |
160 |
230 |
230 |
400 |
400 |
700 |
1100 |
1100 |
1500 |
1500 |
重量 |
㎏ |
2.3 |
3.0 |
4.5 |
7.0 |
9.5 |
15.0 |
19.0 |
33.0 |
58.0 |
93.0 |
160.0 |
200.0 |
四、20K主要连接尺寸及重量
尺寸 |
inch |
1/2 |
3/4 |
1 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
DN |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
L |
mm |
140 |
152 |
165 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
502 |
568 |
H |
mm |
59 |
63 |
75 |
97 |
107 |
142 |
152 |
178 |
252 |
272 |
342 |
345 |
W |
mm |
130 |
130 |
160 |
230 |
230 |
400 |
400 |
700 |
1100 |
1100 |
1500 |
1500 |
重量 |
㎏ |
2.5 |
3.5 |
5.5 |
10.5 |
14.5 |
23.5 |
30.0 |
55.0 |
81.0 |
118.0 |
200.0 |
250.0 |

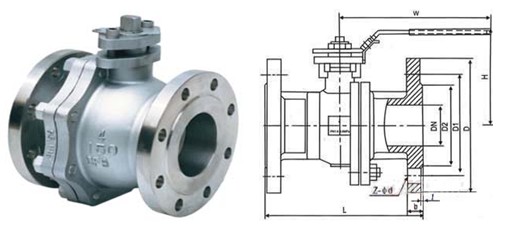

五、150Lb外形尺寸和连尺寸
公称通径 |
单位 |
L |
D |
T |
G |
C |
n-Φd |
W |
H |
in |
mm |
1/2″ |
15 |
㎜ |
108 |
89 |
12 |
35 |
60.5 |
4-15 |
115 |
72 |
in |
4.25 |
3.5 |
0.47 |
1.38 |
2.38 |
4-0.59 |
4.53 |
28.3 |
3/4″ |
20 |
㎜ |
117 |
98 |
12 |
43 |
70 |
4-15 |
115 |
76 |
in |
4.61 |
3.86 |
0.47 |
2 |
3.13 |
4-0.59 |
5.9 |
3.62 |
1″ |
25 |
㎜ |
127 |
108 |
12 |
51 |
79.5 |
4-15 |
150 |
92 |
in |
5 |
4.25 |
0.47 |
2 |
3.13 |
4-0.59 |
5.9 |
3.62 |
1-1/2″ |
40 |
㎜ |
165 |
127 |
14.3 |
73 |
89.5 |
4-16 |
200 |
123 |
in |
6.5 |
5 |
0.56 |
2.88 |
3.88 |
4-0.62 |
7.87 |
4.84 |
2″ |
50 |
㎜ |
178 |
152 |
15.9 |
92 |
120.5 |
4-19 |
200 |
132 |
in |
7 |
6.00 |
0.625 |
3.62 |
4.75 |
4-0.75 |
7.87 |
5.20 |
2-1/2″ |
65 |
㎜ |
190 |
178 |
17.5 |
105 |
139.5 |
4-19 |
320 |
164 |
in |
7.5 |
7 |
0.69 |
1.12 |
5.50 |
4-0.75 |
12.6 |
6.45 |
3″ |
80 |
㎜ |
203 |
190 |
19.1 |
127 |
152.4 |
4-19 |
320 |
173 |
in |
8 |
7.50 |
0.75 |
5 |
6 |
4-0.75 |
12.6 |
8.6 |
4″ |
100 |
㎜ |
229 |
229 |
23.9 |
157 |
190.5 |
4-19 |
450 |
210 |
in |
9 |
9 |
0.94 |
6.19 |
7.5 |
4-0.75 |
17.72 |
8.26 |
6″ |
150 |
㎜ |
394 |
279 |
26 |
216 |
241.5 |
8-22 |
8000 |
288 |
in |
15.5 |
10.98 |
1.02 |
8.5 |
9.50 |
8-0.88 |
31.5 |
1.34 |
8″ |
200 |
㎜ |
457 |
343 |
29 |
270 |
298.5 |
8-22 |
1120 |
374 |
in |
18.00 |
13.50 |
1.12 |
10.62 |
11.75 |
8-0.88 |
44.10 |
14.72 |
10″ |
250 |
㎜ |
533 |
406 |
31 |
324 |
362 |
12-25 |
1420 |
366 |
in |
20.98 |
16 |
1.2 |
12.75 |
14.75 |
12-1 |
55.12 |
14.40 |
12″ |
300 |
㎜ |
610 |
483 |
32 |
381 |
432 |
12-25 |
1420 |
412 |
in |
24 |
19 |
1.26 |
15 |
17 |
12-1 |
55.12 |
16.22 |
六、300Lb外形尺寸和连接尺寸
公称通径 |
单位 |
L |
D |
T |
G |
C |
n-Φd |
W |
H |
in |
mm |
1/2″ |
15 |
㎜ |
140 |
95 |
15 |
35 |
66.5 |
4-15 |
115 |
72 |
in |
5.51 |
3.74 |
0.59 |
1.38 |
2.62 |
4-0.59 |
4.53 |
28.3 |
3/4″ |
20 |
㎜ |
152 |
117 |
16 |
43 |
82.5 |
4-19 |
115 |
76 |
in |
5.98 |
4.61 |
0.62 |
1.69 |
3.25 |
4-0.75 |
4.53 |
29.9 |
1″ |
25 |
㎜ |
165 |
124 |
18 |
51 |
89 |
4-19 |
150 |
92 |
in |
6.5 |
4.9 |
0.71 |
2 |
3.5 |
4-0.75 |
5.9 |
3.62 |
1-1/2″ |
40 |
㎜ |
190 |
156 |
20.7 |
73 |
114.5 |
4-22 |
200 |
123 |
in |
7.5 |
6.12 |
0.81 |
2.88 |
4.51 |
4-0.88 |
7.87 |
4.84 |
2″ |
50 |
㎜ |
216 |
165 |
22.3 |
92 |
127 |
8-19 |
200 |
132 |
in |
8.5 |
6.5 |
0.88 |
3.62 |
5 |
8-0.75 |
7.87 |
5.20 |
2-1/2″ |
65 |
㎜ |
241 |
190 |
25.4 |
105 |
149 |
8-22 |
320 |
164 |
in |
9.5 |
7.5 |
1 |
4.12 |
5.87 |
8-0.88 |
12.6 |
6.45 |
3″ |
80 |
㎜ |
283 |
210 |
28.5 |
127 |
168.5 |
8-22 |
320 |
173 |
in |
11.25 |
8.25 |
1012 |
5 |
6.62 |
8-0.88 |
12.6 |
6.8 |
4″ |
100 |
㎜ |
305 |
254 |
31.8 |
157 |
200 |
8-22 |
450 |
210 |
in |
12 |
10 |
1.25 |
6.19 |
7.88 |
8-0.88 |
17.72 |
8.26 |
6″ |
150 |
㎜ |
403 |
318 |
36.6 |
216 |
270 |
12-22 |
1120 |
336 |
in |
15.875 |
12.5 |
1.44 |
8.5 |
10.62 |
12-0.88 |
44.10 |
13.23 |
8″ |
200 |
㎜ |
502 |
381 |
42 |
270 |
330 |
12-25 |
1420 |
385 |
in |
19.76 |
15 |
16.5 |
10.62 |
12.99 |
12-1 |
55.12 |
15.16 |
10″ |
250 |
㎜ |
568 |
444 |
48 |
324 |
387.5 |
16-29 |
1420 |
370 |
in |
22.36 |
17.50 |
1.89 |
12.75 |
15.25 |
16-1.12 |
55.12 |
14.56 |
定货须知: 1.产品型号与名称 2.公称通径DN(mm) 3.公称压力 4.流量特性 5.阀体材质 6.额定流量系数 7.介质种类和温度范围 8.阀前后压力(压差) 9.电源电压和控制信号 10.其它特殊要求
